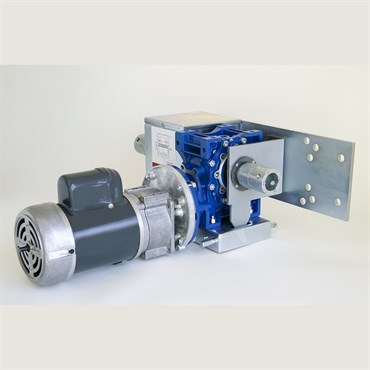

Wadsworth VC-2000 ILS Vent Drive
1.2 RPM - 1-3/8in OD Shaft - Includes Motor, Gearbox and Mounting Hardware
The VC2000 is Wadsworth's most powerful drive unit. It meets the challenge of long vent runs and heavy vents. With its quiet running, low current, high output motor, the VC-2000 keeps your utility bills low. This gear system offers thermal overload protection with an automatic reset feature, ensuring uninterrupted and continuous operation. It offers quick and straightforward reversing functionality, providing ease of use. The worm gear is intricately designed with tapered roller bearings on dual output shafts, immersed in synthetic oil to optimize performance. The dual output shaft design enhances versatility, allowing for various applications. The unit is sealed for life offering minimal maintenance. Its superior heat dissipation is achieved through a well-engineered fin and casting design, contributing to long-lasting and efficient performance.

• Gear Motor: 1/5 HP - 115V; 60Hz; 2.5 amps - TEFC
• Ball Bearing Motor: Class B insulation
• Gear Reducer: 1350:1 total reduction; 1.2 final output
• Output Torque: 1500 inch lb / 169 Nm
• Lifts up to 325ft of 4ft polycarbonate roof ridge vent or 400ft of 4ft polycarbonate side vent
